Table BDNA_PUBLISH.dbo.CAT_SOFTWARE_EDITION
Software Edition information table

 Generated by
SchemaSpy
Legend:
Primary key columns
Columns with indexes
Implied relationships
Excluded column relationships
< n > number of related tables

Column Type Size Nulls Auto Default Children Parents Comments
ID float 8
CAT_SOFTWARE_RELEASE.EDITION_ID FK2_CAT_SOFTWARE_RELEASE R
CAT_SOFTWARE_EDITION table's unique identifier
LAST_MODIFIED_DATE datetime 16,3  √  null The date when last modification on the row was made
PRODUCT_ID float 8  √  null
CAT_SOFTWARE.ID FK0_CAT_SW_EDITION R
Software product's unique identifier
LABEL varchar 2000  √  null Software product's edition name
TAXONOMY_ID float 8  √  null
CAT_TAXONOMY.ID FK1_CAT_SW_EDITION R
BDNA Taxonomy's unique identifier

Analyzed at Thu Oct 04 14:29 PDT 2012

Indexes:
Column(s) Type Sort Constraint Name
ID Primary key Asc PK_CAT_SW_EDITION

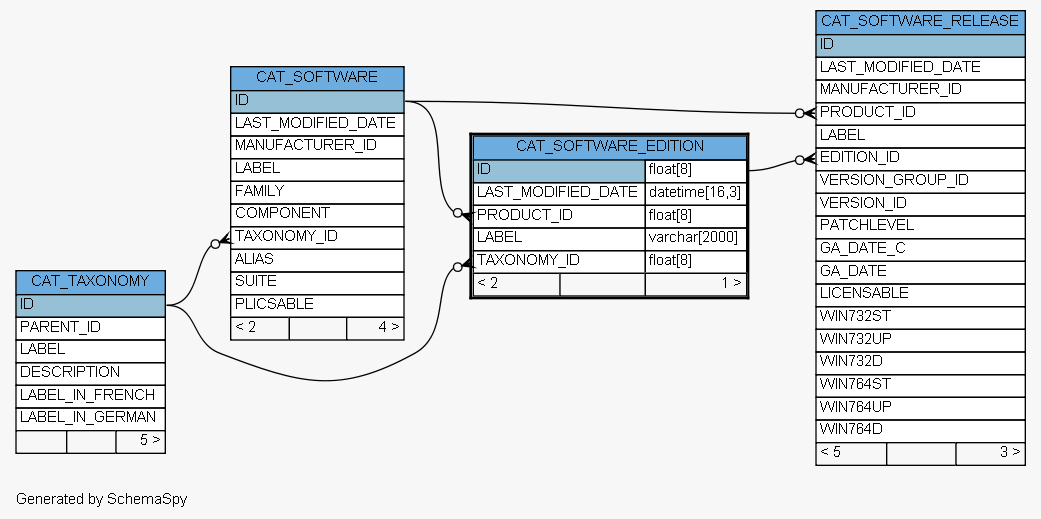

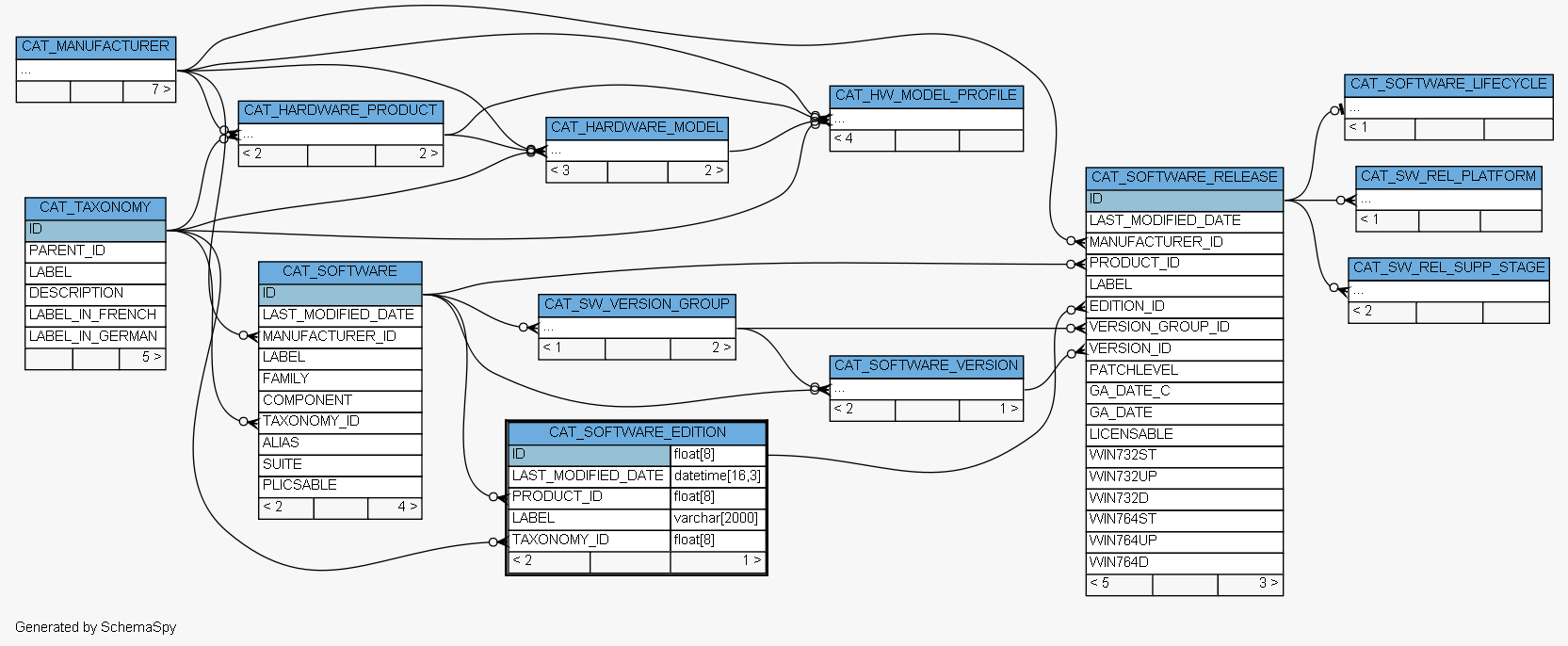

Close relationships  within of separation:
